4 Browse species and genes

4.1 Structure of the Browse page

One could browse all included species on the Browse page. It contains two parts:

1. Interactive summary pie charts. Three pie charts showing the basic info of included species.

Note

Clicking one piece of the pie chart could perform data filtering.

2. A table showing the basic assembly information of the species. One could click the Species name column to browse detailed information about this species and all gene lists.

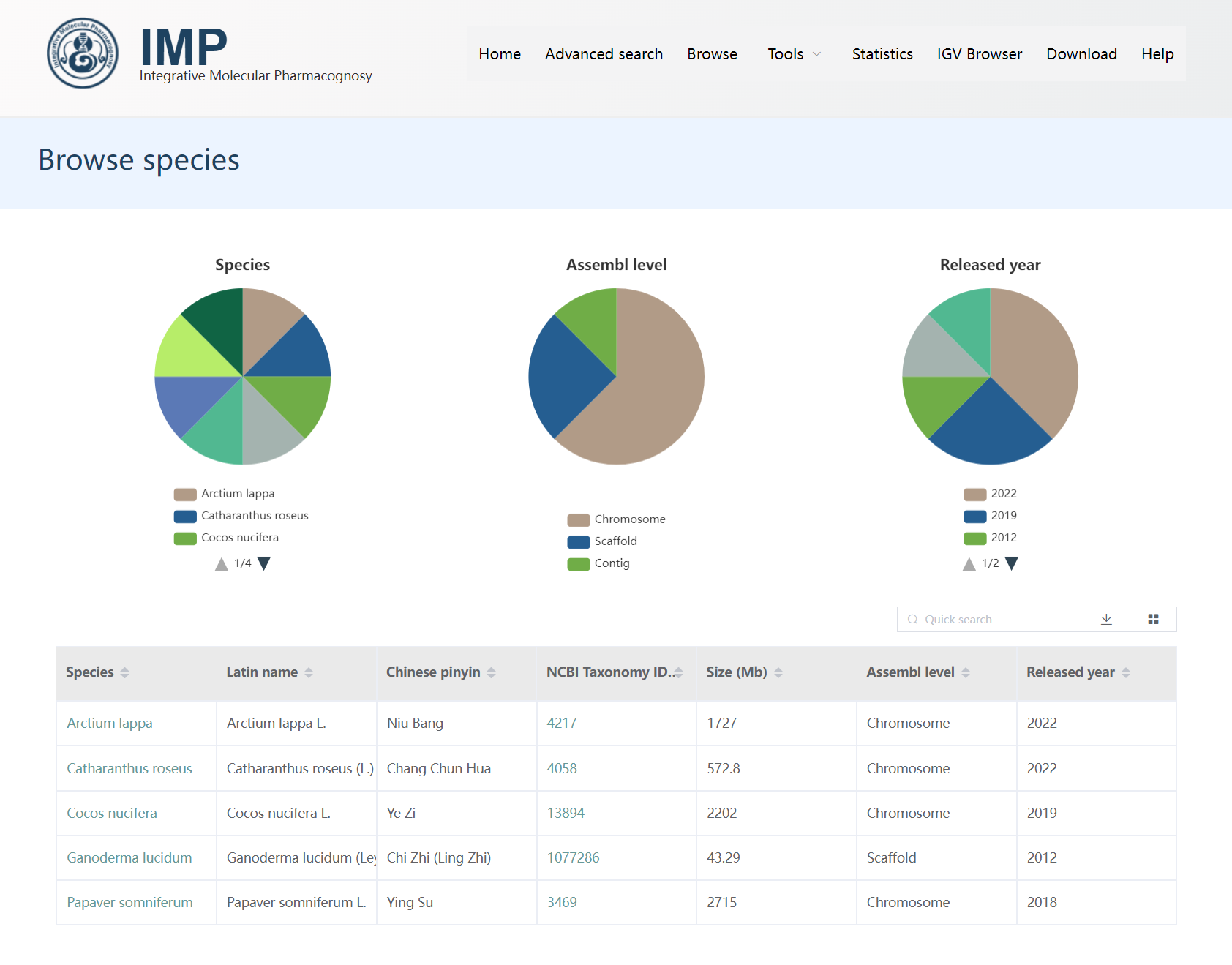

Figure 4.1: A screenshot of the Browse page.

4.2 Structure of the species detail page

It contains 4 parts for each species.

1. Basic information: Species, Latin name, Chinese Pinyin, NCBI taxonomy ID (NABI taxonomy link).
2. Assembly information: Assembly (related NCBI link), Genome size, Release year, WGS accession (related NCBI link), Submitter, BioProject (related NCBI link).
3. References: If this genome is published, related literature information would be shown here.
4. Genes: A table showing all genes of this species.

Note

The send-to button could feasibly transfer selected genes to functional modules for further exploration.

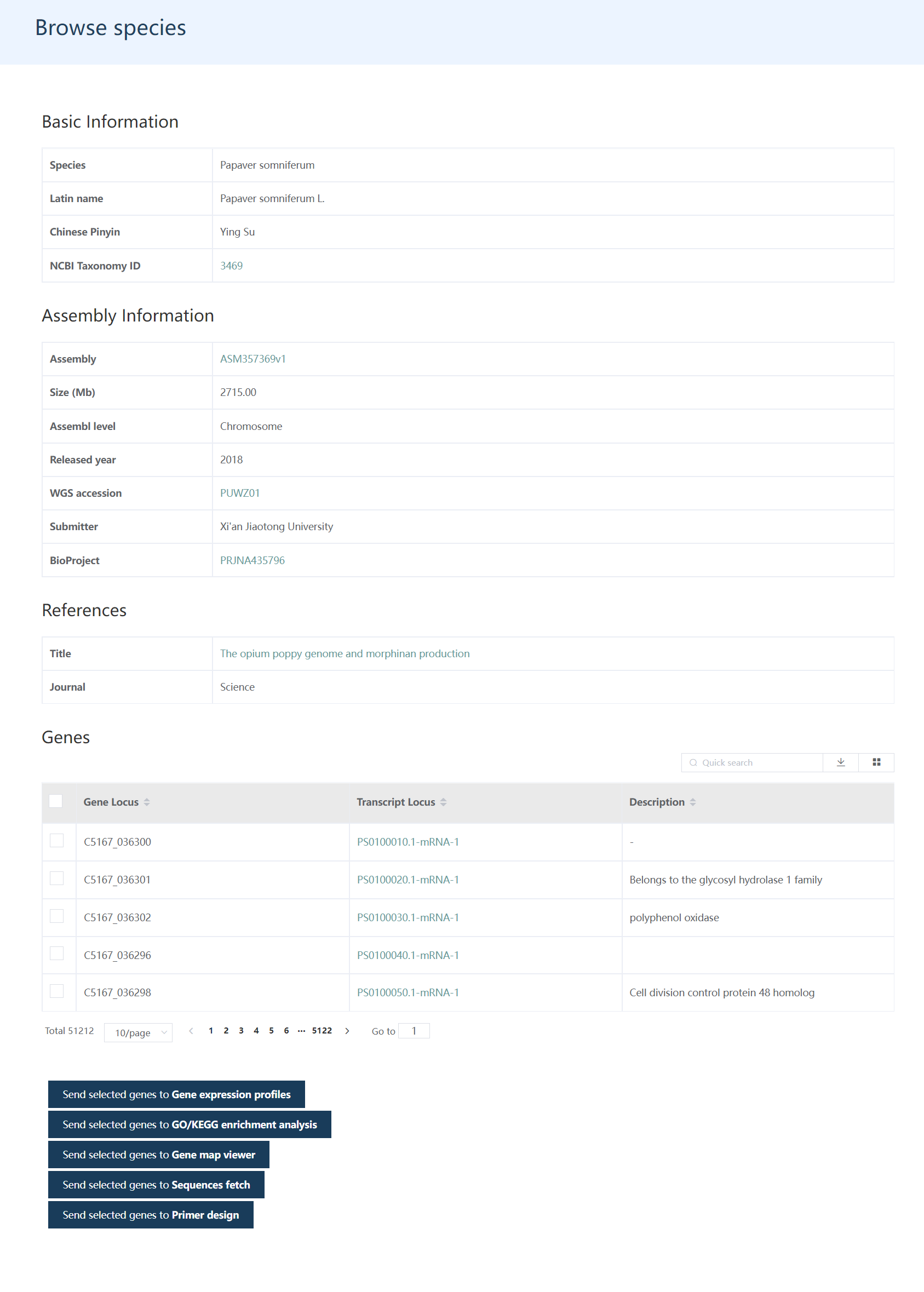

Figure 4.2: A screenshot of the Papaver somniferum detail page.
